Site Assessment and Terrain Analysis for Mountain PV Mounting Installations
Before any Mountain PV Mounting System is installed, conducting a comprehensive site assessment and terrain analysis is a non-negotiable step. This process lays the foundation for a structurally sound, efficient, and long-lasting photovoltaic (PV) power generation system. Mountain environments bring unique challenges that demand a tailored approach to surveying, engineering, and design.
Understanding the Geographical Complexity of Mountainous Terrain
Mountain sites are often characterized by steep slopes, inconsistent soil composition, and irregular rock formations. These geographical characteristics directly impact system design and require precise mapping. Using advanced tools such as LiDAR (Light Detection and Ranging), UAV (drone) photogrammetry, and GIS (Geographical Information Systems), engineers can obtain high-resolution topographical data to evaluate the slope gradient, direction, and elevation.
Slope gradient and aspect play a crucial role in determining panel orientation. A slope facing south (in the Northern Hemisphere) typically receives the most sunlight, making it ideal for PV installations. However, the angle of inclination affects racking systems, anchoring methods, and panel tilt adjustments. Too steep a slope may require terracing or structural reinforcement, which affects both cost and complexity.
Soil and Rock Composition Analysis
Unlike flatland or desert installations, mountain PV projects must contend with highly variable subsurface conditions. Engineers must perform geotechnical assessments to understand whether the soil is clayey, sandy, loamy, or rocky. These details are essential for choosing between pile-driven, ground-screw, or ballast-based foundations.
Rocky substrates often make pile-driving impossible without pre-drilling or using micro-piles. In such conditions, chemical anchoring or concrete footings may become necessary. Conversely, loose or unstable soils may require deep pilings or wider foundations to distribute load evenly and prevent settling or tilting.
Ground penetration resistance tests, soil shear strength analysis, and moisture retention studies contribute to foundation planning. The stability of the soil under various load conditions—including heavy snow or seismic activity—must also be simulated to validate long-term safety.
Sun Path and Shading Considerations
In mountainous areas, shading from surrounding peaks, trees, or even the slope itself can drastically affect solar energy yield. A site analysis should include year-round shading models using software such as PVsyst or Helioscope. These tools allow for virtual simulations of energy output based on time-of-day, seasonal variations, and panel placement.
Any shaded area, even for a brief part of the day, can reduce a panel’s output or create mismatched strings unless mitigated with smart inverters or power optimizers. As such, string design and shading management should be a part of the early analysis phase.
Environmental and Climatic Conditions
Weather data collection is another vital element of mountain site assessment. Wind speeds at altitude can be extreme and unpredictable, especially along ridges. Likewise, snow accumulation, freeze-thaw cycles, and heavy rainfall are typical in elevated regions. Collecting at least one year’s worth of meteorological data (or obtaining data from nearby weather stations) is recommended to model loading scenarios.
High wind and snow loads directly impact the structural specifications of the mounting system. The selected design must not only survive these conditions but maintain system integrity over 25–30 years of expected operation.
Microclimates are also common in mountainous regions. A north-facing slope may remain shaded and cooler, leading to more snow accumulation, while the adjacent south-facing area might experience more thermal expansion and contraction. These local variations necessitate highly localized data and custom engineering.
Accessibility and Infrastructure Planning
Access to mountain sites often involves logistical challenges. Roads may be undeveloped or only seasonally accessible. Transporting materials and equipment to steep, remote areas requires careful planning. A feasibility study should assess the cost and difficulty of delivering structural components, solar panels, cranes, and concrete.
In many cases, helicopter lifts, cableways, or temporary mountain tracks are necessary to facilitate construction. These access limitations can significantly impact project timelines and budgets, so site logistics should be included in the preliminary survey phase.
Biodiversity and Environmental Impact
Mountain ecosystems are often ecologically sensitive zones. The site assessment must include a study of potential environmental impact, including habitat disruption, erosion risk, and deforestation. Ecological surveys may be required by local authorities, especially in protected or high-biodiversity areas.
Erosion control measures, such as silt fencing or reinforced vegetation, may be mandated before any excavation begins. In addition, local flora and fauna must be protected to avoid penalties or delays due to non-compliance.
Choosing the Right PV Mounting Structures for Mountain Environments
The selection of an appropriate PV mounting structure is pivotal in ensuring the long-term performance, durability, and safety of a Mountain PV Mounting System. Mountain environments introduce distinct challenges—uneven terrain, harsh climate conditions, variable soil compositions, and difficult logistics—that all influence the structural decision-making process. The goal is to choose a system that balances strength, cost-effectiveness, and ease of installation.
Fixed Tilt vs. Adjustable Tilt Mounting Systems
Fixed-tilt structures are commonly used in mountain PV installations due to their simplicity and lower maintenance requirements. These systems maintain a constant angle, which is usually optimized based on the site’s latitude and annual solar path data. In mountainous regions, the natural slope can be utilized to match the panel angle, minimizing the need for complex racking.
Adjustable tilt systems, on the other hand, offer the advantage of seasonal optimization. While they can significantly improve energy yield in areas with variable solar incidence, they often require more mechanical components and regular adjustments, which may not be feasible in remote or difficult-to-access mountain locations.
For most mountain applications, a fixed-tilt system with a tilt angle equal to or slightly greater than the site latitude is preferred for balancing efficiency and system reliability.

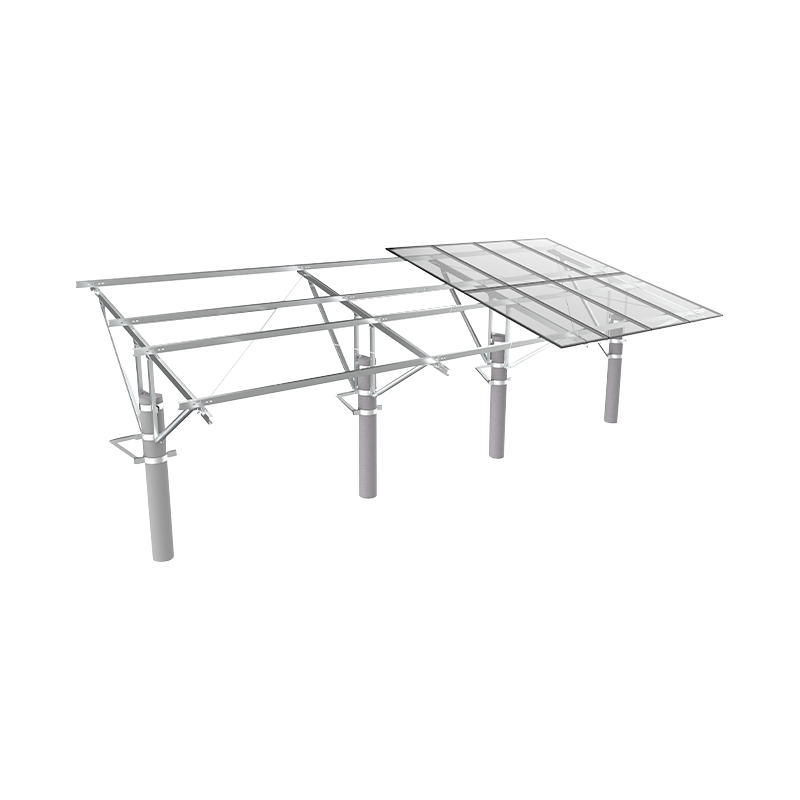

Ground-Mounted vs. Pole-Mounted Systems
Ground-mounted systems dominate in utility-scale PV deployments, including those in mountainous areas. They are designed with a matrix of steel or aluminum frames secured to the ground using piles, screws, or ballast. In terrains with shallow soil over bedrock or loose scree, pile depth and anchoring strength must be carefully calculated.
Pole-mounted systems are ideal for small-scale applications or highly uneven ground where ground frames cannot be uniformly supported. These are especially useful in off-grid or hybrid mountain PV systems where minimal ground disturbance is desirable.
Pole-mounted arrays typically feature single or dual-panel configurations, which can be manually oriented or equipped with single-axis tracking. However, tracking systems introduce mechanical complexity and vulnerability in snowy or windy conditions, thus making them less common in mountainous installations.
Structural Materials: Steel vs. Aluminum
Material choice is driven by a balance of weight, corrosion resistance, strength, and cost. Galvanized steel is widely used due to its high strength and affordability. It can handle high wind and snow loads but is heavier, which increases transportation costs and installation effort on mountain terrain.
Aluminum, though more expensive, is lighter and naturally corrosion-resistant. It is often chosen for high-altitude or coastal mountain sites where moisture and UV exposure accelerate corrosion. Anodized aluminum systems offer extended longevity and are easier to assemble, but may require thicker profiles to achieve the same structural strength as steel.
In hybrid systems, aluminum rails are used for panel mounting, while the substructure or legs are made of hot-dip galvanized steel to provide a rigid base.
Anchoring Techniques and Adaptability to Terrain
In mountain PV projects, the racking system must conform to the contours of the land without compromising structural integrity. Adjustable leg systems, Z-brackets, and flexible frame assemblies enable adaptation to slopes with gradients up to 30 degrees or more.
Ground screws are often preferred in rocky or shallow soils where pile driving is unfeasible. These helicoidal anchors can be manually or hydraulically inserted and allow precise vertical alignment.
For very steep slopes, terracing the land and using tiered mounting frames may be necessary. This approach provides horizontal alignment while managing rainwater runoff and reducing soil erosion risks. In such cases, civil engineering integration becomes critical.
Transportability and Pre-Fabrication
Modular racking systems are increasingly favored in mountain installations due to logistical constraints. Components that are pre-cut, pre-drilled, and labeled at the factory reduce onsite work, which is especially beneficial where road access is poor or installation crews must carry parts over long distances.
Kits designed for containerized delivery or pack-animal transport are used in rugged regions like the Himalayas or Andes, where conventional road-based logistics are unavailable.
Foundation Design and Ground Anchoring Techniques on Sloped Terrain
The foundation is the literal base upon which the reliability of a Mountain PV Mounting System depends. Designing stable and cost-effective foundations on uneven or sloped terrain presents a unique set of structural and geotechnical engineering challenges. Unlike flatlands, mountains often feature inconsistent soil conditions, embedded rock layers, and drainage complications that must be addressed through meticulous planning.
Types of Foundations for Mountain PV Systems
There are several types of foundations suitable for mountain PV installations. The choice depends on soil composition, slope angle, climate conditions, and available equipment:
*Driven Piles: Steel H-beams or tubular piles driven into the ground are effective in firm soils but can be impractical in rocky or boulder-filled terrains.
*Ground Screws: These are helically threaded steel rods that are twisted into the ground like a screw. They offer excellent pull-out resistance and are suitable for a wide variety of soils, including partially rocky sites.
*Concrete Footings: When the ground is too rocky for piles or screws, pre-cast or in-situ concrete blocks are used. These are often paired with adjustable brackets to account for slope variations.
*Ballasted Foundations: Suitable for very shallow soils or temporary installations. Ballast blocks hold the mounting structure in place without penetration but require stable surfaces and proper drainage.
Each foundation type requires a tailored approach to load transfer and system stability, especially under mountain-specific wind and snow conditions.
Slope Management and Terracing
In cases where slopes exceed 15 to 20 degrees, terracing is often used to create flat platforms for PV rows. Terracing not only simplifies installation but also prevents soil erosion and improves drainage.
However, creating terraces can disturb vegetation and increase construction costs. Therefore, flexible racking systems with variable-length legs are often preferred when minimal land alteration is desired. Leg extensions, often telescopic, allow each support point to be independently height-adjusted to match terrain contours.
Anchoring Depth and Load Bearing
The anchoring system must resist vertical loads (dead weight of panels and structures), lateral forces (wind pressure), and uplift forces (caused by wind or frost heave). Engineering calculations must account for:
*Snow load, especially in mountain ranges like the Alps or Rockies
*Wind uplift, which can be extreme at higher altitudes
*Seismic loads, in earthquake-prone mountain regions
Anchoring depth typically ranges from 1.2 to 2.5 meters depending on the structural load and soil bearing capacity. Ground screw and pile suppliers provide load charts based on field test results, but it is often necessary to perform site-specific pull-out tests to validate theoretical models.
Rock Drilling and Micro-Pile Solutions
In regions with solid bedrock or dense cobbles, standard pile driving or ground screws may not be feasible. In such cases, micro-pile systems are used. These involve drilling a small-diameter hole into the rock, inserting a threaded anchor rod, and grouting it in place. This method offers exceptional stability and load resistance but comes with increased labor and equipment costs.
Drilling rigs adapted for mountainous use—often tracked or portable—are deployed to handle this task. The key is ensuring alignment precision and consistent grout fill, especially where access is constrained.
Drainage and Frost Protection
Water management is a critical part of foundation design in mountain PV installations. Improper drainage can lead to soil softening, frost heave, or footing instability. French drains, surface grading, and geotextile membranes are used to divert water away from foundations.
In colder climates, frost protection is achieved by embedding the base below the frost line and using thermal breaks or insulation materials where needed. Concrete footings are typically flared at the base to distribute load and resist lateral frost thrust.
Cost and Construction Efficiency
Remote mountainous terrain presents unique logistical constraints that influence foundation strategy. Lightweight foundation systems that require minimal excavation and no curing time—like ground screws or modular ballast trays—reduce installation time and cost.
Design-for-installation (DFI) principles guide foundation engineering to prioritize minimal labor, fewer specialized tools, and fast deployment. In many mountain PV projects, foundations must be installed manually due to the lack of road access, which further emphasizes the need for a modular and adaptable foundation strategy.
Dealing with Harsh Environmental Conditions: Wind, Snow, and Soil Stability
Mountains are often characterized by extreme environmental conditions that can significantly impact the durability and performance of PV mounting systems. These conditions include high winds, heavy snowfall, freezing temperatures, and the inherent instability of mountain soil. Effective mitigation strategies must be employed to ensure that the system remains functional and safe throughout its operational life.
Wind Loads and Structural Integrity
Wind forces are one of the primary concerns when installing PV systems in mountainous regions. At higher elevations, wind speeds are often much stronger and more unpredictable, which can create substantial loads on the mounting structure. If not properly accounted for, these forces can lead to structural failure, panel dislodgement, or even system collapse. To address this, a robust structural design is essential. Engineers must conduct wind load analysis based on local wind data, including maximum gust speeds and their frequency.
Wind forces are calculated using standards such as ASCE 7 (American Society of Civil Engineers), which provides guidelines for determining wind loads based on site-specific conditions. These loads must be incorporated into the design of the mounting system, and every component must be reinforced to withstand the expected wind pressure. Mounting systems with high wind resistance often use thicker steel or aluminum framing and employ additional anchoring methods, such as deeper piles or ground screws, to ensure stability.
In some cases, aerodynamic considerations can also help reduce wind loads. The racking systems can be designed with a low profile to minimize wind resistance, or the panels can be installed at a slight angle to allow wind to flow more smoothly over the surface. Additionally, structural bracing can be incorporated to provide further lateral support to the mounting structure.
Snow Load Considerations
Mountains are often prone to significant snowfall, which presents both an immediate burden on the structure and long-term challenges related to freeze-thaw cycles. Snow accumulation can add considerable weight to the PV array, which must be supported by the mounting system. Snow can also obstruct solar panels, reducing their efficiency by blocking sunlight. To address these concerns, snow load calculations must be factored into the structural design.
The snow load is determined based on the average annual snowfall, the site's elevation, and the slope of the panels. In regions where snow accumulation is heavy, the mounting structure may need to be reinforced with additional bracing or larger footings to distribute the weight of the snow. Furthermore, the angle at which the PV panels are mounted should be adjusted to allow for the shedding of snow. Steeper panel angles are typically more effective in shedding snow, reducing the likelihood of snow buildup that could damage the panels or cause them to become inefficient.
In addition to snow accumulation, the freeze-thaw cycle can affect the soil stability around the foundations. Repeated freezing and thawing can cause the soil to expand and contract, which may result in shifting foundations and unstable mounting systems. To prevent this, foundations should be embedded deep enough to reach below the frost line, where the soil remains stable. Special care should be taken in regions with frequent freeze-thaw cycles, and additional frost protection measures, such as thermal barriers or insulated footing designs, may be necessary.
Soil Stability and Erosion Control
Mountainous terrain is often characterized by unstable soils, which can present challenges for mounting system installation. Loose soils, such as sand, gravel, or silt, are prone to erosion, while steep slopes may cause landslides or soil movement that could compromise the stability of the PV system. To mitigate these risks, geotechnical surveys are essential to assess the composition and stability of the soil.
In areas with unstable soils, ground anchors such as helical piles or screw piles are preferred because they provide a secure connection to the more stable bedrock beneath the surface. These types of anchors are capable of withstanding vertical and lateral forces without relying on soil friction. In more severe cases, where soil erosion is a concern, additional erosion control measures such as silt fences, rock barriers, or reinforced vegetation may be necessary to stabilize the ground.
For steep slopes, terracing may be employed to reduce soil movement and provide a level foundation for the mounting system. Terracing involves cutting into the slope to create flat platforms on which the mounting system can be placed. This technique also helps to control water runoff, reducing the risk of erosion and maintaining soil integrity around the foundations.
Climate Adaptability and Long-Term Durability
Given the harsh and variable conditions in mountain environments, the materials used for PV mounting systems must be selected for their durability. Metal components, for instance, should be corrosion-resistant, particularly in regions with heavy snowfall or frequent exposure to moisture. Hot-dip galvanized steel and anodized aluminum are common choices due to their resistance to corrosion and ability to withstand the extreme conditions often found at high altitudes.
Long-term durability is also influenced by UV exposure, especially in regions with high solar intensity. UV radiation can degrade certain materials over time, leading to brittleness and failure. As such, coatings that provide UV protection or using inherently UV-resistant materials is a critical consideration in the material selection process.
Step-by-Step Guide to Mechanical Installation of Mountain PV Mounting Systems
The mechanical installation of a Mountain PV Mounting System is a multi-step process that involves careful planning, precise execution, and a focus on safety. Given the unique challenges posed by mountainous terrain—such as slope irregularities, accessibility issues, and extreme weather—installing a PV system requires expertise in both solar technology and rugged construction methods.
Initial Site Preparation and Surveying
The first step in the installation process is thorough site preparation, which begins with surveying and marking the locations of the mounting system. The survey should take into account the slope angle, elevation, and any shading obstacles, such as nearby peaks or trees. High-resolution mapping tools such as GPS or drones may be used to gather accurate data on the site's topography and to ensure precise placement of the mounting structure.
Once the survey is complete, the next task is to clear the site of any obstructions. This may involve removing rocks, vegetation, or debris that could interfere with the installation. In some cases, minor excavation may be required to level the ground or create space for the foundation.
Foundation Installation
The foundation is the most critical part of the installation process, as it ensures the stability of the entire system. Depending on the soil composition and terrain, the foundation may consist of ground screws, piles, or concrete footings. In mountain environments, using ground screws or helical piles is often preferred because they can be installed with minimal disturbance to the landscape and are ideal for uneven or rocky terrain.
The foundation must be installed with precision to ensure that the mounting structure remains level and secure. Typically, each foundation anchor is drilled or screwed into the ground, with each pile or screw being tested for stability. In areas with deep or rocky soils, additional equipment such as drilling rigs may be necessary to achieve the required depth.
Mounting Structure Assembly
After the foundation is secured, the next step is to assemble the mounting structure. This involves the installation of rails or frames that will hold the PV panels in place. The frames are typically pre-assembled in sections to streamline the installation process. Once the rails are in place, they are secured to the foundation anchors, ensuring that the entire system is level and stable.
For adjustable tilt systems, mechanical adjustments can be made to the angle of the rails to optimize the panel's exposure to sunlight. In the case of fixed-tilt systems, the rails are positioned at a predetermined angle based on the site's latitude and seasonal solar access.
Panel Installation
Once the mounting structure is in place, the solar panels can be installed. The panels are typically mounted onto the rails using specialized clamps that secure the panel frames to the mounting structure. Care must be taken to ensure that the panels are oriented in the optimal direction and that they are securely fastened to avoid any movement during high winds or snow accumulation.
When installing panels, it's important to ensure that the wiring is properly routed and that the electrical connections are secure. This often involves running wires through the mounting structure and securing them with cable ties or clips to prevent damage from environmental factors.
Electrical Wiring and System Integration
The final step in the installation process is the integration of the electrical system. This involves connecting the solar panels to the inverter and ensuring that the electrical connections meet local safety standards. For mountain installations, additional considerations must be made for the routing of electrical cables, particularly in areas with high winds, heavy snow, or risk of wildlife interference.
After all wiring is completed, the system is tested to ensure that it is functioning properly and that all connections are secure. In many mountain installations, a local monitoring system is also installed to track the performance of the system in real-time and provide alerts if there are any issues with energy production.
Overcoming Challenges in Remote and Rugged Terrain for PV Mounting Systems
Installing a Mountain PV Mounting System in remote and rugged terrains poses unique logistical and technical challenges. The combination of hard-to-reach locations, harsh environmental conditions, and the lack of infrastructure complicates the installation process and increases both costs and time. Overcoming these challenges requires specialized knowledge, equipment, and strategies to ensure the system’s stability and long-term functionality.
Access to Remote Locations
The first challenge when working in rugged mountain terrain is access. Many mountainous regions lack paved roads or any form of reliable transportation infrastructure, making it difficult to transport materials, equipment, and personnel to the site. In some remote areas, the only access may be through narrow dirt roads, steep inclines, or even hiking trails.
To overcome this, a detailed access plan must be developed before the project begins. This may involve constructing temporary access roads, using all-terrain vehicles, or employing helicopters for heavy lifting and material transport. In some extreme cases, pack animals or manual labor may be used to carry equipment into the installation site.
Once access is established, careful planning is needed to transport materials and equipment in a manner that minimizes environmental impact. Helicopters, for example, may be used to deliver large materials in one trip, reducing the number of trucks or vehicles required and minimizing the disturbance to the terrain.
Site Surveying and Terrain Analysis
Site surveying in mountainous areas is another significant challenge due to the often uneven and unpredictable nature of the terrain. Traditional surveying methods may be inefficient or impossible in some regions, particularly in steep or remote areas. To accurately assess the site, high-tech tools such as drones, LiDAR (Light Detection and Ranging), and GPS mapping systems are increasingly used to create 3D models of the terrain.
These tools help in identifying suitable locations for foundations, determining slope angles, and assessing the potential for soil erosion or landslides. Drones can also provide real-time visual data, allowing engineers to evaluate terrain features such as rock formations, vegetation, and other obstacles that could impact the installation process.
Once the terrain has been accurately mapped, the next step is to analyze it for stability. Soil testing is essential to assess the type of soil and its load-bearing capacity. This will determine whether a more robust foundation system, such as helical piles or micro-piles, is required or if lighter ground screws will suffice. In some cases, geological surveys may be conducted to assess the risk of landslides or soil erosion, especially on steep slopes or areas prone to heavy rainfall.
Material Transportation and Handling
In rugged mountainous regions, transporting materials to the installation site is often the most time-consuming and costly part of the project. Given the lack of road infrastructure, it may be necessary to ship materials to the nearest accessible location and then transport them by helicopter, all-terrain vehicles, or manual labor.
Helicopter lifting is commonly used for larger, heavier materials like PV panels, inverters, and mounting frames. In such cases, proper lifting equipment, such as slings and rigging systems, must be used to ensure the safety of both the materials and personnel involved. A helicopter lift can be expensive, but it is sometimes the only viable option in remote or high-altitude locations where trucks or cranes cannot access.
When transporting materials by vehicle, all-terrain vehicles (ATVs) or tracked vehicles can be employed. These vehicles are specially designed to handle steep inclines, rugged terrain, and uneven ground, allowing the transportation of equipment to difficult-to-reach sites. For smaller projects, manual labor may be required to carry materials to the installation site, especially when access is limited or the terrain is particularly difficult.
Local Workforce and Skilled Labor
In remote mountain regions, the availability of a skilled workforce can be a significant challenge. Many mountain areas are sparsely populated, and local labor may not have the expertise required for PV system installation. In these cases, it may be necessary to bring in specialized labor from other regions or countries.
This requires careful coordination and planning, as the workforce must be transported to the site, often requiring multiple trips or using helicopters for smaller groups. The construction team should also be trained in the specific requirements of installing PV systems in rugged terrain, including knowledge of safety protocols, working with specialized equipment, and adapting to challenging weather conditions.
Working in remote areas often involves working in harsh weather conditions, such as extreme cold, high winds, and sudden storms. This requires that the installation crew be adequately equipped with cold-weather gear and other necessary equipment to ensure their safety. Furthermore, safety protocols must be strictly followed, as working at height or in challenging terrain can pose significant risks.
Environmental and Regulatory Considerations
Installing PV systems in remote mountainous regions requires careful attention to environmental impact and compliance with local regulations. In many cases, mountain ecosystems are sensitive and may include protected wildlife, fragile vegetation, or historical landmarks. It is essential to conduct an environmental impact assessment (EIA) before beginning the project to identify any potential issues and mitigate risks.
Permitting is often a time-consuming and complex process, requiring approval from local government bodies, environmental agencies, and possibly indigenous or local community groups. The permitting process may involve submitting detailed plans, conducting site surveys, and ensuring that the project will not disrupt wildlife or harm the environment.
Long-Term Maintenance and Monitoring
Once the PV system is installed, the challenges are far from over. In remote mountain areas, regular maintenance and monitoring are essential to ensure that the system operates efficiently. Due to the isolation of many mountain sites, maintenance can be difficult and costly. Therefore, it is important to design the system with minimal maintenance needs, using durable materials that can withstand harsh weather conditions.
Remote monitoring systems are often employed to track the performance of the PV system in real time. These systems can alert operators to issues such as panel malfunction, wiring problems, or inverter failure, allowing for quicker intervention. In cases where remote monitoring is not feasible, scheduled maintenance visits may be required.
The Role of Structural Design in Ensuring the Stability and Durability of Mountain PV Mounting Systems
The structural design of Mountain PV Mounting Systems plays a crucial role in ensuring the stability, durability, and safety of the installation. In mountainous regions, where environmental conditions are often extreme and the terrain is challenging, it is essential to design a system that can withstand high winds, heavy snowfall, and seismic activity, while also maintaining long-term functionality despite the harsh conditions.
Structural Load Considerations
One of the most important aspects of structural design is accounting for the loads that the PV mounting system will be subjected to. These include:
*Dead loads: The weight of the mounting system itself, including the rails, brackets, and hardware, as well as the weight of the solar panels.
*Live loads: The weight of snow, ice, or other debris that may accumulate on the system during storms.
*Wind loads: The force exerted by wind on the mounting structure, which can be particularly intense in mountainous regions.
*Seismic loads: In regions prone to earthquakes, seismic activity must also be considered in the structural design of the mounting system.
The structural design must ensure that the mounting system can withstand these loads without failure. Engineers use various standards, such as the ASCE 7 or Eurocode, to calculate the appropriate load factors and safety margins. Materials such as galvanized steel or anodized aluminum are often selected for their strength and ability to withstand these forces.
Material Selection for Mountain PV Mounting Systems
Material selection is another key factor in ensuring the durability of the system. The materials used for the mounting structure must be able to withstand the harsh environmental conditions found in mountainous regions. The following materials are commonly used:
*Galvanized Steel: Steel is known for its strength, making it ideal for supporting heavy loads. However, it is susceptible to corrosion in humid or wet environments, which is why galvanization is often used to protect it. Hot-dip galvanized steel is especially durable and can withstand extreme weather conditions.
*Aluminum: Aluminum is lightweight and resistant to corrosion, making it an excellent choice for mountain installations where minimizing weight is crucial. It is often used for the rails and brackets of the mounting system.
*Stainless Steel: Stainless steel is highly resistant to corrosion, making it a suitable choice for areas with high levels of moisture, such as coastal or high-altitude mountain regions.
*Composite Materials: In some cases, composite materials may be used for mounting systems, especially when weight reduction is a priority. These materials combine strength with low weight and resistance to environmental factors.
Choosing the right material depends on a variety of factors, including the location’s climate, soil conditions, and expected load requirements. Engineers must also consider the material’s ability to resist UV degradation, as prolonged exposure to sunlight can weaken some materials over time.
Geotechnical Considerations
The soil composition and stability of the installation site play a significant role in the structural design. Mountainous areas often feature rocky terrain, unstable soil, or loose gravel, all of which can make it difficult to secure the foundations of the mounting system. The geotechnical properties of the soil must be carefully analyzed to determine the type of foundation that will provide the best stability.
In areas with loose soil, helical piles or ground screws may be used to anchor the mounting structure securely. In rocky terrain, micro-piles or drilled concrete foundations may be necessary to ensure proper anchoring. Engineers must also take into account the risk of erosion, particularly on slopes, and design the system to minimize soil movement and maintain structural stability.
Dynamic Load and Vibration Resistance
Mountainous regions are often subjected to seismic activity, which can introduce dynamic loads and vibrations to the mounting system. In such areas, the structural design must account for the possibility of earthquakes, which can cause the system to shake or shift.
To mitigate this, mounting systems may be designed with additional damping elements or flexible joints that can absorb the energy generated by seismic events. By incorporating these design features, the system can withstand dynamic loads and vibrations without compromising its integrity.
