Balcony can also generate electricity: Balcony PV Mounting system lights up every wall in the city

New possibilities for urban balconies

In the steel and concrete forest of modern cities, balconies are often seen as one of the few "breathing holes". In cities with tall buildings and tight land resources, people are eager for more natural and green spaces. But at the same time, energy consumption and environmental pressure are also accumulating in cities. How to seek a breakthrough in clean energy in a limited space is becoming an important issue facing urban sustainable development.

In recent years, with the global energy transformation and the proposal of the "carbon peak and carbon neutrality" goals, photovoltaic power generation, as one of the most promising forms of clean energy, is gradually penetrating from remote photovoltaic power stations and vast rural roofs to the core living areas of cities. Balconies, as an external space owned by almost every household, are beginning to be re-examined - it is no longer just a corner for drying clothes and planting green plants, but more likely to become a small, flexible and efficient "micro power station".

Why has the urban balcony become a new front for photovoltaics? On the one hand, traditional rooftop photovoltaics face many restrictions in high-rise residential buildings in cities, which makes it difficult for most urban residents to enjoy the benefits of photovoltaics. As a space that each household can independently control, the balcony has good accessibility and flexibility, and has natural "energy autonomy". On the other hand, the facade space of urban balconies has been neglected for a long time. In fact, they receive a lot of lateral sunlight. If they can be used reasonably, they have great potential.

It is in this context that a new photovoltaic solution, the Balcony PV Mounting system, came into being. This type of system is based on lightweight and high-strength materials. Through the stable connection with the balcony guardrail and wall, the photovoltaic components can be stably installed on the balcony or even on the facade. More importantly, this type of system adopts modular design and adjustable angle brackets, which not only adapts to a variety of building structures, but also dynamically optimizes the power generation angle according to the sunshine conditions, greatly improving the light energy utilization efficiency of the balcony space.

What is more noteworthy is that the emergence of the balcony photovoltaic system is not only a technological innovation, but it is also quietly changing the relationship between urban residents and energy. In the past, urban families were just energy consumers. Now, they can become "micro-generators" through balcony photovoltaic systems and participate in distributed energy networks. This role change not only helps reduce electricity costs, but also enhances individuals' awareness and participation in energy autonomy.

What is Balcony PV Mounting?

In the traditional impression, photovoltaic systems are mostly installed on rural roofs, on the tops of large factories in industrial parks, or on large open spaces in solar power stations. These scenes generally have open spaces and good lighting conditions, which are suitable for large-scale photovoltaic module laying. However, with the development of technology and the increase in urban energy demand, an emerging form that is closer to the lives of urban residents - **Balcony PV System** is quietly entering our field of vision.

What is a balcony photovoltaic system?

Balcony PV mounting, as the name suggests, is a distributed energy system that miniaturizes and modularizes the photovoltaic power generation system and installs it on the balcony or facade wall of residents. It consists of solar cell modules, lightweight brackets, inverters, cables and safety protection devices, and some systems also integrate energy storage batteries. The system absorbs sunlight, converts it into direct current, and then converts it into AC power that can be used by the home through the inverter, providing residents with daily electricity needs such as lighting, home appliances, and charging.

The most core feature is that it is small and exquisite, flexible and easy to use. Unlike traditional large-scale photovoltaic power generation equipment, the balcony photovoltaic system is based on the concept of "each household as a unit" and "each wall can be used", which specifically solves the problem that urban residences cannot install photovoltaics on a large scale, so that urban families can also build "mini power stations" independently.

Differences from traditional rooftop photovoltaic systems

Although balcony PV mounting and rooftop photovoltaics are essentially both solar photovoltaic power generation, there are obvious differences between the two in actual applications, which are mainly reflected in the following aspects:

1.Installation space and scene adaptation

Rooftop photovoltaics: mainly for villas, rural residences or low-rise commercial buildings, with open, unobstructed large-area roof space. Excellent lighting conditions, suitable for installing multiple components, pursuing maximum power generation.

Balcony PV mounting: facing the residents of high-rise residential areas in the city, the balcony space is limited and the structure is diverse, which is not suitable for laying large-area photovoltaic panels. Therefore, balcony photovoltaics pay more attention to the fine use of space, such as installation on guardrails, exterior walls or window brackets, and can even be installed vertically on the side wall.

2.Users and decision-making methods

Rooftop photovoltaics: usually involve the roof property rights of the entire building, and need to coordinate the owner's committee or property unit for unified deployment. The process is relatively complicated, involving collective decision-making, budget approval and other issues.

Balcony PV mounting: installed on the individual balcony, the owner can make independent decisions without complex coordination. It is particularly friendly to individual users living in apartments and rental houses, and has extremely high promotion flexibility and convenience.

3.Installation difficulty and construction method

Rooftop photovoltaics: requires a professional construction team to conduct structural surveys, roof drilling, system wiring, bracket fixing, etc. The construction period is long and has certain interference with the house structure.

Balcony PV mounting: The bracket system adopts a punch-free design or an adjustable snap-on structure, which is fixed to the balcony guardrail or wall by bolts, clamps, etc. The construction is simple, and even some products support "DIY installation". It only takes half a day to complete, which is suitable for novice users and individuals to quickly deploy.

4.Aesthetics and architectural integration

Rooftop photovoltaics: Because it is installed on the roof, it is not easy to be found and usually does not affect the appearance of the building. But it is difficult to implement in urban communities.

Balcony PV mounting: Due to its location close to the living space, the system must take into account both visual beauty and architectural style integration. The current new balcony PV mounting generally adopts ultra-thin components and hidden wiring solutions to achieve photovoltaic functions without affecting the transparency and aesthetics of the balcony.

5.Power generation goals and application scenarios

Rooftop photovoltaics: Usually pursue **high power and maximum power generation**, connect to the grid to sell electricity or cooperate with energy storage systems, suitable for full electrification and self-sufficient energy systems for families.

Balcony PV mounting: Pursue **low threshold start** and "use to promote production", provide families with daily electricity supplements (such as lighting, rice cookers, mobile phone charging, routers, etc.), and can also be connected to the grid for power generation, but it is more inclined to the "small goals" of distributed energy replenishment and energy conservation and carbon reduction.

balcony PV mounting: A step towards the democratization of urban energy

The emergence of balcony PV mounting is not only an innovation at the product level, but also represents a "democratization" of energy acquisition methods. It lowers the threshold for participation and allows ordinary families to benefit from clean energy. This "distributed, individualized, scenario-based" energy solution is quietly subverting the traditional energy supply and demand structure.

As the technology continues to mature, the component efficiency, inverter intelligence, and safety performance of balcony PV mounting are rapidly improving. From the simple "one balcony and two panels" to a new generation of product systems with intelligent operation and maintenance, remote monitoring, and energy storage synergy, balcony PV mounting is moving towards a smarter, safer, and more inclusive future.

Core design of the new bracket system

To make the urban balcony truly a "frontier" of clean energy, not only efficient photovoltaic modules are needed, but also a flexible, stable, lightweight and safe installation platform must be relied on - this is the value of balcony PV mounting. Unlike traditional photovoltaic brackets that are mainly for large-span and large-load-bearing structures on roofs and ground, balcony PV mounting faces a narrow, complex and changeable urban balcony environment, so there is an essential difference in design concept and engineering implementation.

Modular structure: flexible splicing to adapt to various balconies

Modular design is a key concept to improve installation efficiency and adaptability in modern engineering. The modular structure adopted by balcony PV mounting means that the entire system can be assembled, expanded or reduced according to the size, shape and installation requirements of different balconies like "building blocks".

This not only brings extremely high customization flexibility, but also makes standardized production of products possible, greatly reducing manufacturing and transportation costs. At the same time, modular components are usually equipped with preset interfaces and quick-install connectors. Even non-professionals can complete assembly and debugging in a short time with simple tools, which greatly simplifies the installation process.

In addition, the advantage of modularity lies in its reusability and detachable mobility. For renters or short-term residents, balcony PV is no longer a "fixed investment", but a set of green assets that can be taken away and reused. After moving, it only needs to be reassembled according to the structure of the new balcony and it can be put into use again.

Lightweight material: balance between high strength and urban safety

Since the balcony space is close to the living environment and the structural load-bearing capacity is limited, the balcony PV mounting must be both light and strong, without increasing the burden on the balcony while ensuring safety. For this reason, the current mainstream products mostly use high-strength aluminum alloy or rust-proof hot-dip galvanized steel as the main material.

The advantages of aluminum alloy brackets include:

*Light weight: The density is only one-third of that of steel, which greatly reduces the balcony load;

*Strong corrosion resistance: Suitable for humid and rainy external environments;

*Controllable strength: Enhance the structural strength through profile design to ensure long-term stability;

*Beautiful appearance: The surface is smooth after anodizing treatment, which is more coordinated with the modern balcony style.

The advantages of rust-proof steel brackets are:

*Extremely high structural stability: suitable for resisting high-rise wind loads;

*Long service life: the galvanized layer can effectively prevent rust and oxidation;

*Controllable cost: suitable for users with high economic requirements.

The two types of materials can be flexibly selected according to user needs, climate environment and budget. Some high-end systems even use carbon fiber composite materials to further improve strength and aesthetics, and promote balcony PV mounting to be lighter, stronger and more environmentally friendly.

Multi-scenario adaptation: adapt to various balcony and wall environments

The balcony forms of urban residential buildings vary greatly. They may be semi-enclosed, with glass enclosures, or with cantilevered railings or embedded platforms. Therefore, one of the core challenges of balcony PV mounting is to achieve high adaptability to diverse scenarios.

In order to cope with these complex installation requirements, advanced balcony bracket systems usually have the following design features:

1.Multiple fixing methods are optional

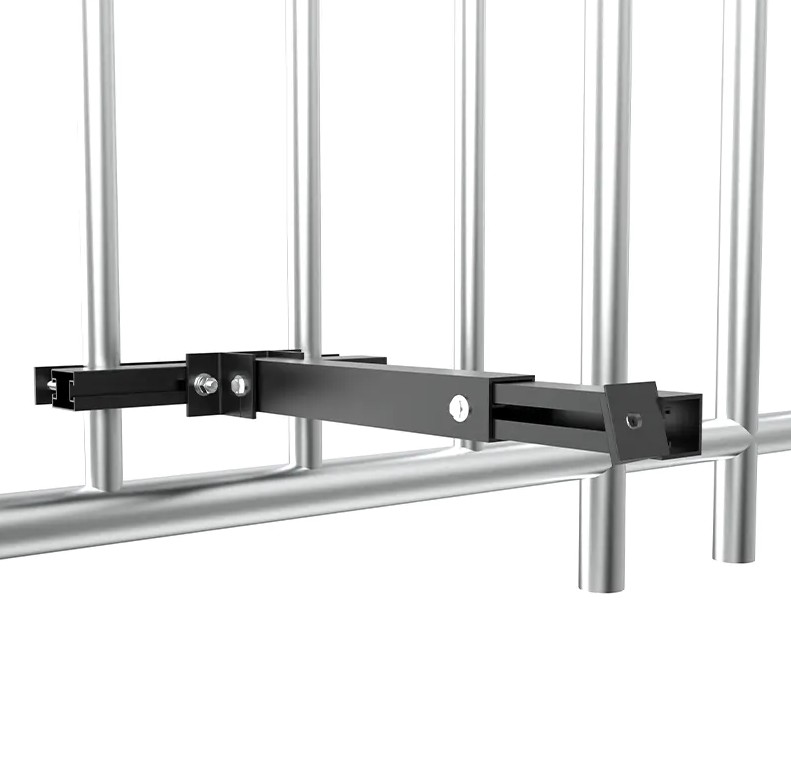

It can be safely connected to structures such as balcony railings, walls, floors, and flower bed edges through bolts, clamps, U-shaped clips, adjustable feet, etc. Some systems support punch-free design, which is particularly suitable for scenarios where changes to the building structure are not allowed, such as rental housing or high-end commercial housing.

2.Adapt to different angles and directions

The bracket can adjust the tilt angle and rotation direction to match balconies with different orientations in the southeast, northwest, and northeast to improve light utilization. Some systems have built-in fine-tuning joints or gear locking structures, and users can fine-tune the angle of the components according to seasonal sunlight to further optimize power generation efficiency.

3.Compatible with vertical and oblique installation

Not only can it be installed horizontally on the balcony railing, but it also supports multiple installation methods such as vertical wall attachment and oblique window hanging, and can even be converted into an "external micro power station" to fully activate the balcony and facade space.

4.Co-designed with ultra-thin photovoltaic modules

Many balcony PV mountings on the market are currently designed for ultra-thin and lightweight modules, which are even thinner than ordinary glass windows and lighter in weight, ensuring that there is no sense of oppression on the balcony. At the same time, these modules have stronger light transmittance and are more suitable for maintaining balcony ventilation and lighting needs.

Every wall can generate electricity: flexible installation scenarios

When we talk about photovoltaic power generation, the first reaction is often "roof" - neatly arranged solar panels shining in the sun. However, in cities where every inch of land is valuable, the traditional "power generation roof" is not easy to obtain. High-rise residential buildings, dense communities, and buildings with complex property rights often make rooftop photovoltaics daunting.

The rise of balcony PV is breaking this space limitation. Through new bracket systems and ultra-lightweight components, almost every wall, every balcony, and even the edge space outside the window may become a "new site" for power generation. This is a deconstructive innovation of the urban energy system - turning vertical space from "ignored" to "activated".

Power generation can be achieved in different directions: Don't let the sun waste a wall

Traditional photovoltaic systems are often deployed only in the south direction to pursue maximum sunlight utilization efficiency. But for balcony PV, it is not only about maximizing power generation, but also maximizing available space and flexibility. The new bracket system and component design allow even walls facing north, east, and west to have certain power generation value.

This is due to three technical factors:

1.Adjustable angle design

The modern bracket system supports the rotation and tilting of photovoltaic modules within a certain angle range, such as adjusting from the vertical wall to a 30-degree inclination, so as to better receive oblique light and make up for the light disadvantage of non-south-facing balconies.

2.High-efficiency monocrystalline PERC or N-type modules

The new generation of high-efficiency photovoltaic modules can still maintain a high conversion rate in weak light and scattered light environments. Even if the sun is biased to the east in the morning and biased to the west in the afternoon, considerable power generation can be accumulated throughout the day.

3.Intelligent inverter and micro-inverter system

The intelligent inverter can automatically adjust the output power according to the light conditions of each component. Even if only a single photovoltaic panel is illuminated, its power generation will not be "dragged down" by other components. This is the significance of the "micro-inverter" system. It makes the power generation plan of one piece on the east wall and one piece on the west wall also have practical benefits.

Balcony - from a leisure corner to a "micro power station"

The balcony is one of the few spaces in urban residences that can directly contact the outside world. In the past, it was a place for drying clothes, drinking tea, and growing flowers, but now, the balcony is becoming the most suitable "strategic outpost" for deploying photovoltaics.

Multi-level installation sites:

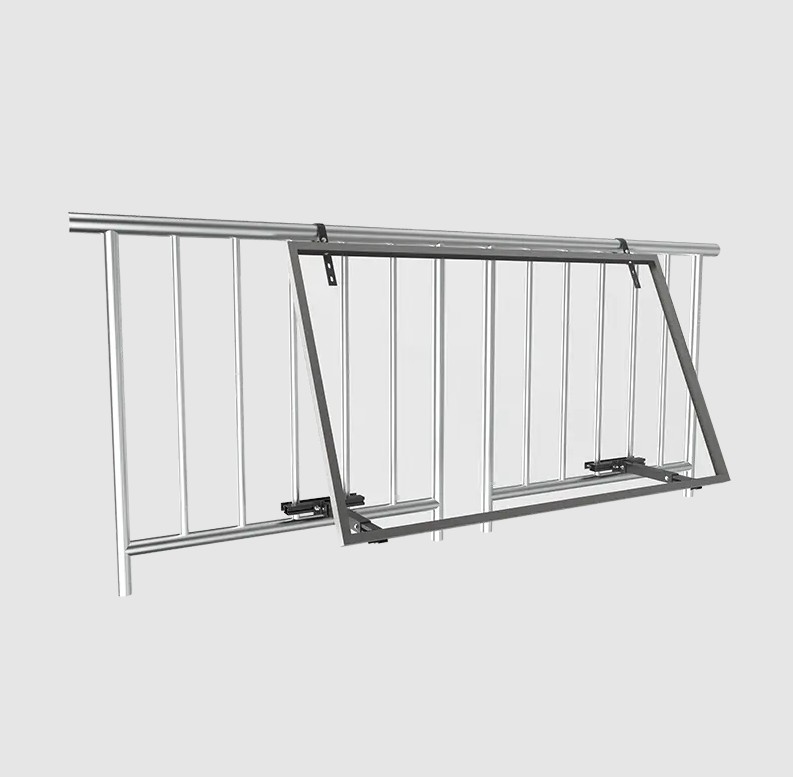

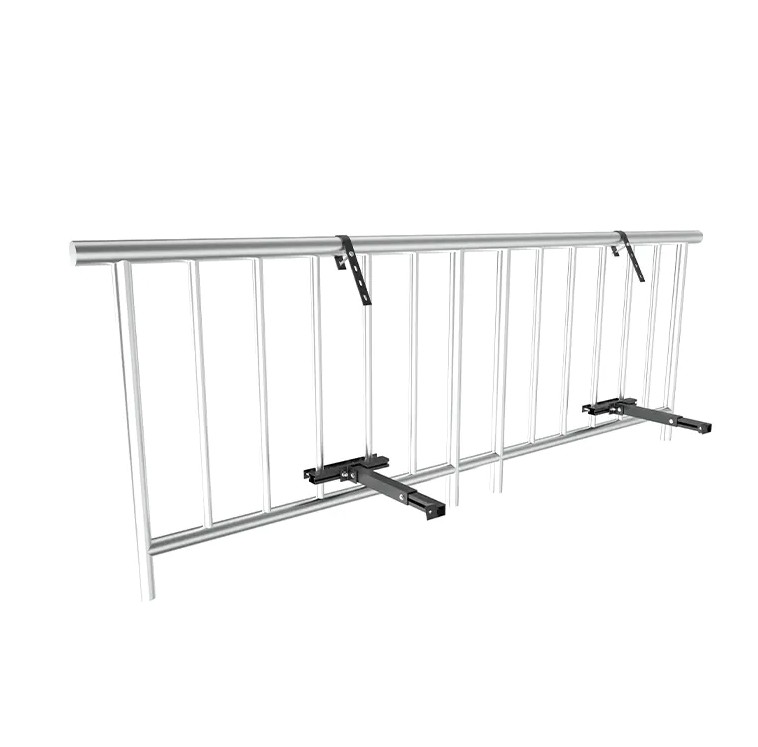

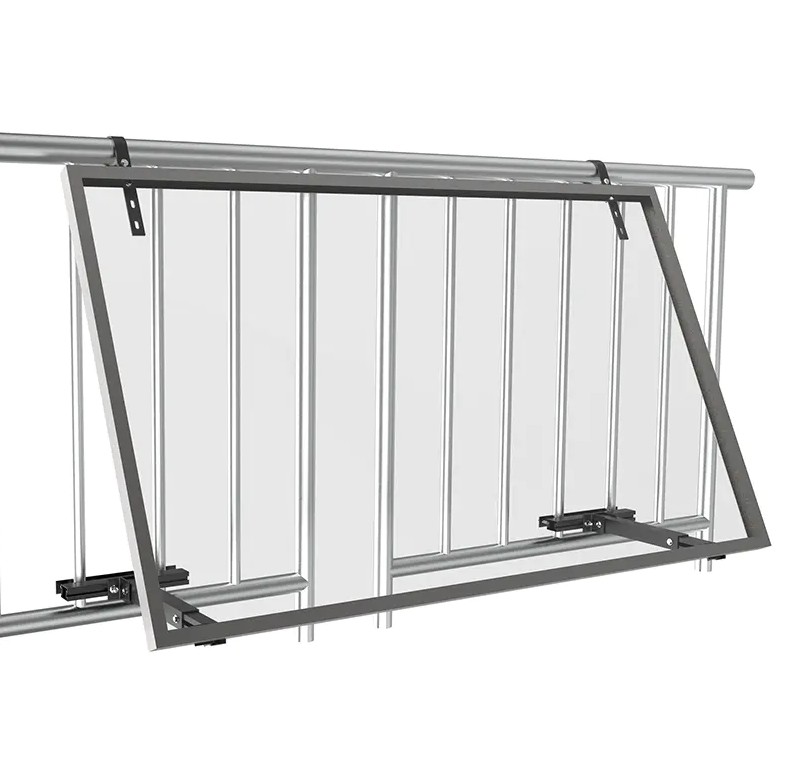

*Balcony guardrail: horizontal brackets can be hung to install 1-2 modules without affecting the field of vision;

*Upper edge of the balcony: use L-shaped or inclined brackets to unfold the modules outward at a certain angle;

*Balcony side wall: particularly suitable for vertically arranging lightweight modules to form a "photovoltaic curtain wall";

*Flower bed or air conditioning position: converted into a foot installation foundation to utilize the blind spot of space;

Especially in the south-facing balcony, the modules can not only generate electricity, but also play the role of sunshade, heat insulation, and enhance the privacy of the balcony, killing two birds with one stone, truly turning the balcony from a "viewing platform" into a "functional platform".

Edge outside the window: small space also has great uses

Many residents may not have a balcony, but only a window. But this does not mean that they cannot participate in the trend of balcony PV. A type of small hanging device designed for "edge space outside the window" has emerged in the new generation of bracket systems. The main features include:

*No need to punch holes, no damage to the structure, fixed to the window edge or bottom edge through adjustable hooks;

*Ultra-thin component design, the thickness is only less than half of the traditional components, ensuring safety;

*Foldable or storable design, suitable for temporary use or flexible deployment by tenants;

This device is suitable for users such as student dormitories, old communities, and short-term rental housing. Even if there is only a 0.5 square meter installation site, it can "insert a photovoltaic leaf".

External facade photovoltaic: Building skin can also generate electricity

With the development of the concept of building photovoltaic integration, more and more urban buildings are beginning to explore ways to directly turn the exterior wall into an energy production platform. In the field of balcony PV, this idea is being promoted to the civilian end in a small-scale and low-cost way.

Design highlights of the combination of bracket and exterior wall:

*Vertical mounting bracket: Attach the photovoltaic module to the exterior wall like a painting, which can generate electricity and is decorative;

*Curtain wall integrated bracket: Integrated design with glass or metal exterior wall to achieve invisible power generation;

*Double glass module combination: It has translucent properties, does not block light, and has beautiful effect;

The promotion of this type of system not only improves the functionality of the building, but also enhances the "green image" of urban buildings. It can be foreseen that in the future, the facades of high-rise apartments, office buildings, and old residential areas may become part of the power generation medium.

Value extension of flexible application scenarios

Every wall can generate electricity, which means that we are moving from "centralized energy" to the era of "distributed energy". Balcony PV is the bridge of this transformation process:

*For individual households: it means lower electricity bills and greater independence;

*For old residential areas: it means upgrading to green communities without renovating the roofs;

*For overall urban energy management: it means the gradual improvement of distributed controllable power supply networks, which helps reduce grid load and improve peak-valley regulation capabilities;

This is not only a reconstruction of the energy structure, but also an innovation in residents' lifestyles.

The secret to improving power generation efficiency: angle-adjustable design

We all know that the angle of sunlight directly determines the power generation efficiency of photovoltaic modules. If you want to "sun" more electricity, you must make the solar panels as perpendicular to the direction of sunlight as possible. For traditional rooftop photovoltaics, this is usually achieved by a one-time angle setting during installation, but in a micro space like a balcony, a fixed angle is not always the best choice.

Therefore, the angle-adjustable design has become a key innovation in the balcony PV mounting system. It not only allows users to adjust the tilt angle of the module according to the season or orientation, but also can capture sunlight to the maximum extent in the complex environment of urban buildings in the most flexible way, thereby significantly improving power generation efficiency.

Why is the angle so important?

The sun changes its "height" throughout the year and moves throughout the day. The sunlight angle is moderate in spring and autumn, high in summer, and low in winter. In a fixed-angle photovoltaic system, if the tilt angle deviates too much from the solar radiation angle, it will lead to a decrease in effective light and a decrease in power generation efficiency.

Data shows that for every 10 degrees deviation from the optimal angle, the power generation efficiency decreases by about 3%\~5% on average; if the optimal angle can be maintained throughout the year, the total power generation can be increased by **10%\~25%**, which is a very considerable gain for the micro balcony system.

Structure and principle of angle-adjustable bracket

The angle-adjustable bracket uses a specific mechanical structure to enable the component to rotate or tilt flexibly within a certain range.

Common designs include:

1.Gear-locked bracket

The tilt angle can be fine-tuned in units of 10° by adjusting the fulcrum with a gear-type scale. After adjustment, the structure is stable and has good wind resistance.

2.Multi-hole pin bracket

The bracket has multiple holes, and users can insert pins to fix it at the corresponding angle as needed. The advantages are simplicity and low cost.

3.Slide rail angle adjustment structure

The combination of sliding guide rails and spiral adjustment rods can achieve continuous angle adjustment, which is suitable for high-end applications that are sensitive to light.

4.Automatic light tracking microsystem (a small number of high-end models)

Use light sensors to adjust the angle in real time, similar to "sunflowers", but the cost is high and has not yet been widely promoted in home balcony scenes.

These designs take into account the space limitations of the balcony. On the basis of ensuring the light structure and easy operation, the convenience of user adjustment and the stability of the system are maximized.

How to adjust the angle according to the season?

A simple rule of thumb is:

The best tilt angle ≈ local latitude ± seasonal correction angle

For south-facing balconies, this adjustment is very effective; for east- or west-facing balconies, the angle and direction can be adjusted to optimize the light reception angle in the morning or afternoon.

Even if it is adjusted only 2\~3 times a year, it can bring an annual average power generation increase of more than 10%, especially in the north or areas with obvious changes in light, this benefit is more significant.

How do ordinary users operate?

Many people worry: I am not an electrician, can I operate these brackets? In fact, modern balcony PV mounting systems have designed the angle adjustment mechanism to be extremely simple, and ordinary users can do it by themselves:

The angle adjustment only requires a wrench or hexagonal tool, and the operation time is within 10 minutes;

The manual is equipped with an angle guide, even with a scale and a recommended seasonal angle chart;

Some businesses provide "seasonal angle adjustment service packages", where professional technicians visit two to three times a year to regularly optimize the tilt angle for users. This is a thoughtful service extension for the elderly or residents who are not convenient to do it.

The practical significance of urban "light chasers"

In urban balcony PV systems, the area of ​​each component is limited, so it is even more important to squeeze out the maximum power generation efficiency on the "unit area". The angle adjustable design just provides the possibility of this fine adjustment.

*For individuals: it means higher returns and shorter payback periods;

*For the system: it means overall stability and efficiency;

*For the urban energy network: the improvement of the power generation capacity of each micro-station is a stronger link in the distributed energy system;

In other words, angle adjustment is not only a technical detail, but also a manifestation of urban lean energy management.

No worries for high-rise buildings in cities: windproof and anti-fall safety design

In cities with tall buildings, many residents are eager to try balcony PV, but are often stopped by a practical problem: high-rise winds are strong, will the solar panels be blown off? Is it safe?

This is a very reasonable concern. The higher the floor, the greater the wind speed, and the larger the wind-exposed area of the building facade. Once it is not firmly fixed, not only will the equipment itself be damaged, but it may also cause serious safety accidents. Especially in windy areas or areas with frequent typhoons, the windproof and anti-fall capabilities of the balcony PV system have become the primary considerations.

Fortunately, with the development of technology and the improvement of standards, the new balcony PV mounting system has long integrated "safety" into its design DNA, and through a variety of structural details and material optimization, it ensures that it can be as stable as a mountain even in the high-rise environment of the city.

How big is the high-altitude wind pressure?

Let's first look at a data: Under normal weather conditions, the wind speed on floors above 10 can be 30%~50% higher than the ground; in strong winds, the instantaneous wind pressure on buildings above 20 floors can reach 400~800 Pa or even higher. This is equivalent to a continuous tensile force of 40\~80 kg per square meter. If the structure is unstable, there is a risk of falling off.

Therefore, when designing a balcony photovoltaic system, it is necessary to start from the three aspects of materials, structure, and connection method to ensure that it has the ability to resist wind pressure and fall risks for a long time.

Wind-lock system: make the bracket "tight and not loose"

In modern balcony PV mounting systems, the wind-lock structure (Wind-lock Bracket) is generally introduced. It is a multiple clamping and clamping mechanism to ensure that the components will not shake, lift or slip under the action of wind.

Common designs include:

*Double-layer pressure strip locking: The upper and lower parts of the component frame are fixed with pressure strips, which not only press the panel, but also enhance the stability of the overall frame;

*Mechanical tooth-biting buckle: The bracket main beam and the installation arm are connected through the "biting structure", and the lock is pressed tighter and tighter under strong wind conditions;

*Anti-loosening nut + spring washer combination: Use fasteners with shockproof performance, which are not easy to loosen even with long-term vibration;

*Invisible hinge structure: Some adjustable angle brackets are embedded with hinges through the rotating shaft, and a bayonet is set, which is easy to adjust and ensures the fixing strength.

The design concept of these structures is similar to that of aircraft wing parts or bridge connectors, ensuring that there is no loosening or breaking at the stress concentration point, thereby effectively resisting the continuous pressure and sudden impact caused by strong winds.

Anti-fall device: multiple guarantees, no hidden dangers

In addition to wind protection, it is also necessary to prevent "falling". Especially in high-rise buildings, once the photovoltaic equipment installed on the balcony falls, the consequences will be disastrous. Therefore, modern systems generally have a secondary protection mechanism for anti-falling.

Core components include:

*Stainless steel anti-fall cable: Each photovoltaic panel or bracket is connected to the balcony body through a stainless steel cable. Even if the main fixing is accidentally loosened, it can also play the role of a "safety rope" to prevent falling.

*Self-locking hook system: Similar to the hook structure used by high-altitude workers, it automatically locks on the balcony guardrail or wall structure when the component is installed. Once the load changes, it automatically locks to enhance redundant safety.

*Limit bolt design: A limit device is set at the end of the installation to prevent the overall slippage even if the position is offset due to structural aging or earthquake.

This "main structure + anti-fall system" double insurance mechanism is close to the safety concept of the climbing rope system to a certain extent. Even if the worst happens, it will not fall out of control.

Light material is also the key to safety

Don't mistakenly think that "heavy is safe". In high-rise use scenarios, lightweight and high-strength materials are a more reasonable choice. At present, the mainstream balcony PV mounting mostly uses the following materials:

*High-strength aluminum alloy (such as 6063-T5): low density, high strength, good rust resistance, suitable for long-term exposure to outdoor environment;

*Hot-dip galvanized carbon steel: after special anti-corrosion treatment, it has both weight and strength advantages and is widely used in the main load-bearing frame;

*Stainless steel fasteners: extremely strong anti-corrosion ability, key parts are not easy to rust and strip;

Through the combination of material selection and structural optimization, the balcony PV system can maintain strength while avoiding unnecessary additional loads on the building, which is a balance between safety and practicality.

Both aesthetics and practicality: strong architectural integration

As balcony photovoltaics enter the lives of urban residents, in addition to power generation efficiency and installation safety, another "stumbling block" that cannot be ignored is the appearance problem.

In modern cities where every inch of land is valuable and aesthetics are diverse, people are no longer satisfied with the extensive installation of "just works". Balconies are not only places to dry clothes and plant flowers and plants, but also windows for people facing nature in urban life. A photovoltaic system that destroys the facade of a building and blocks light may be regarded as a "burden" by residents even if it generates electricity efficiently.

From "industrial style" to "architectural language"

Early balcony photovoltaic bracket systems often originated from industrial scenes, pursuing strength and function, but ignoring the visual experience of the residential environment. The thick steel frame, messy wiring, and exposed components are not only unsightly, but also often lead to property obstruction or neighborhood disputes.

In order to solve this problem, modern balcony photovoltaic bracket systems gradually introduce "architectural language":

*Simple lines and light structure: The overall shape tends to be minimalist, avoiding complex cross structures, so that people can't tell from a distance that "this is a photovoltaic system";

*Hidden bolt and pressure strip design: By hiding the connection points and pressure plates, a clean and neat appearance is retained;

*Uniform color treatment: The bracket surface uses matte gray, silver white, black and other colors close to the building facade, which are not abrupt and do not dominate;

*Fit the balcony geometry: According to the common balcony aspect ratio, railing thickness, corner style and other prefabricated bracket forms, it can be "integrated" after installation.

This transformation from "manufacturing language" to "architectural language" is an important step for balcony photovoltaics to truly integrate into residents' lifestyles.

Invisible bracket design: power generation equipment "disappears"

In order to further reduce the sense of equipment, a variety of "invisible" design concepts are adopted in the bracket structure to make the photovoltaic system visually as weak as possible:

1.Folded edge embedded design: After the bracket main beam is attached to the guardrail or wall, the edge is folded into the fixed structure, and there is almost no obvious protrusion from a distance.

2.Hollow lightweight skeleton: The traditional sealed backplane is cancelled, and the hollow structure is adopted to reduce weight and reduce obstruction, making the components look more "transparent".

3.Modular integrated molding: The originally exposed cables and connectors are integrated into the bracket skeleton, and the "machine room feeling" caused by the exposed lines is avoided through integrated packaging.

4.Asymmetric tilt angle optimization: For balconies with different north-south and east-west orientations, an asymmetric design is adopted to make the component tilt angle more natural in the structure and form a continuous extension relationship with the wall.

These designs make the balcony photovoltaic no longer a "power station hanging outside the window", but a part hidden in the life scene, taking into account both function and beauty.

Adapting to ultra-thin photovoltaic panels: thinness is also a kind of beauty

It is not enough for the bracket to look good, the components themselves must also keep up. The new generation of balcony systems generally use ultra-thin, translucent or fully black photovoltaic panels, which are closer to "building materials" rather than "power generation equipment" in terms of visual expression.

Ultra-thin glass components (3\~4mm): The thickness is about 40% less than that of traditional components, and the visual pressure is less after installation, which is suitable for balcony railings or cantilevered walls.

Translucent components: Some areas are light-transmissive, so that the balcony can still retain natural light channels, taking into account planting, ventilation and lighting functions.

Integrated black components: Using all-black frames and non-reflective coatings, the overall dark mirror texture is perfectly matched with modern residential exterior glass or metal facades.

After these components are matched with the bracket, the appearance is almost like a piece of decorative glass or windbreak, rather than a traditional "solar panel", which is more easily accepted by residents, property and architects.

Social impact of architectural integration

Upgrading the appearance of balcony photovoltaic systems is not only an aesthetic issue, but also a practical driving force. Many urban pilot projects have found that:

*The appearance is coordinated, and residents' acceptance has increased by about 60%;

*The property management no longer strongly opposes, and the attitude of supporting installation is more positive;

*Architectural designers have begun to actively consider the "embedded" solution of photovoltaic components and incorporate them into the building structure.

*Once it changes from "later external plug-in" to "part of the building", balcony photovoltaics will be able to move from a small-scale spontaneous installation to a large-scale urban layout.
